Definition

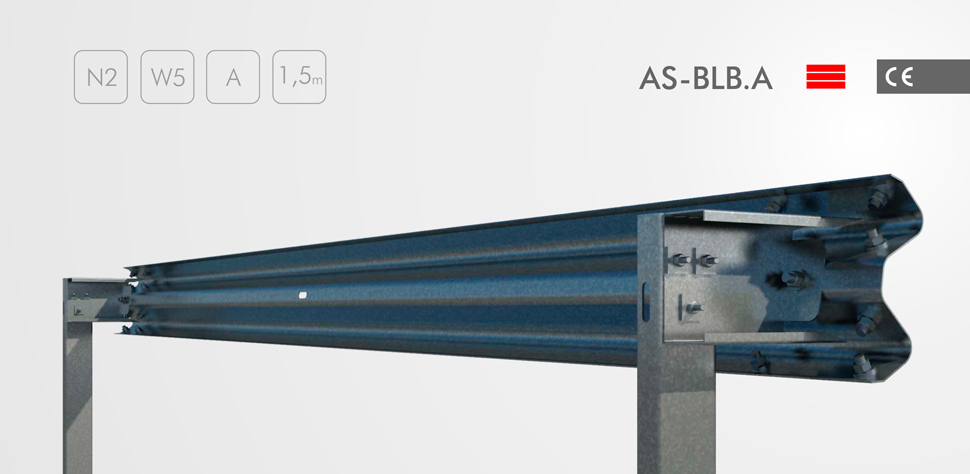

Single metal barrier for lateral side. System formed by a double wave barrier, spacer and C posts 4 metres apart.

Performance parameters

Containment level N2 Working Width (W) W5 Impact Severity A Dynamic Deflection (D) 1.5 m

Profile

Components for sections of 4 m

Item Part Units
1  Standard barrier of 4 m 1
2  C post-120 of 1,500 mm 1
3  Standard spacer 1
4  Reflector 0,5
5  Round head bolt M16x30, with nut 8
6  Round head bolt M16x40, with nut 1
7  Hexagon head cap bolt M10x40 3
8  M10 nut 3
9  Washer Ø17x 35×4 mm 9
10  Rectangular washer 100x40x5 mm 1
11  Square washer 40x40x5 mm 6

Fasteners
