Definition

Single metal barrier reduced for lateral side. System formed by a double wave barrier and C posts 1,33 metres apart.

Performance parameters

Containment level N2 Working Width (W) W2 Impact Severity A Dynamic Deflection (D) 0.6 m

Profile

Components for sections of 4 m

Item Parts Uds
1  Standard barrier of 4 m (Perforated at intervals of 1,33 m) 1
2  C post-125x70x18x4 de 1,400 mm 3
3  Washer Ø17 x35x4 mm 8
4  Hexagon nut M16 8
5  Round head bolt M16x30 8
6  Hexagon head cap bolt DIN 933 M10x40 quality 8.8 3
7  Washer 40x40x5 mm Ø11 for M10 3
8  Nut DIN 934 M10 quality 8 3
9  Washer 100x40x5 with hole Ø11 for M10 3
10  Reflector 0.5

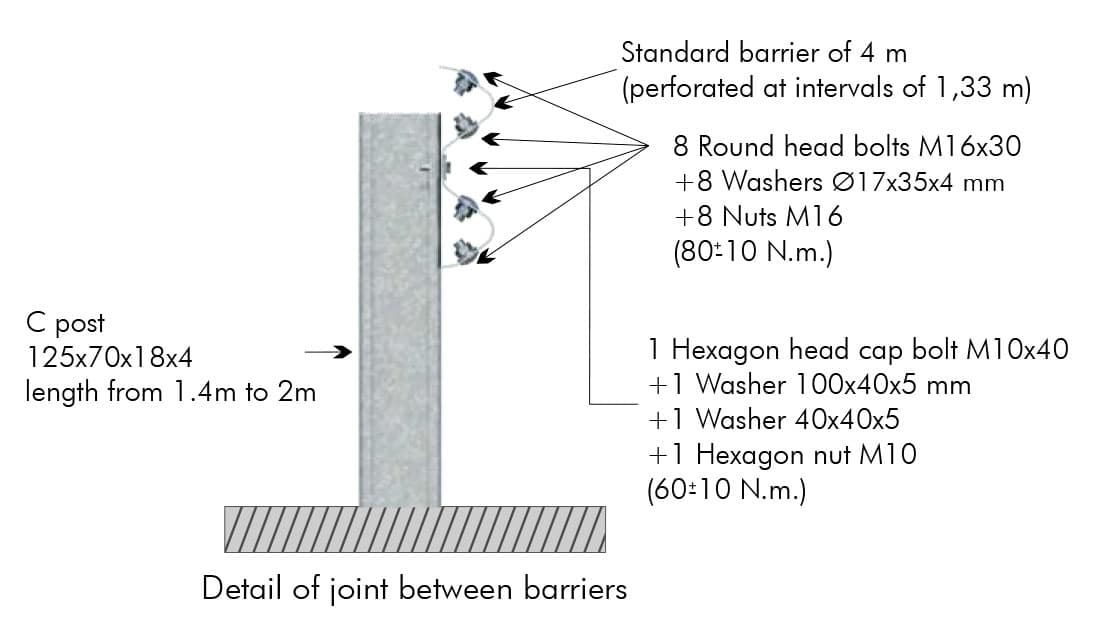

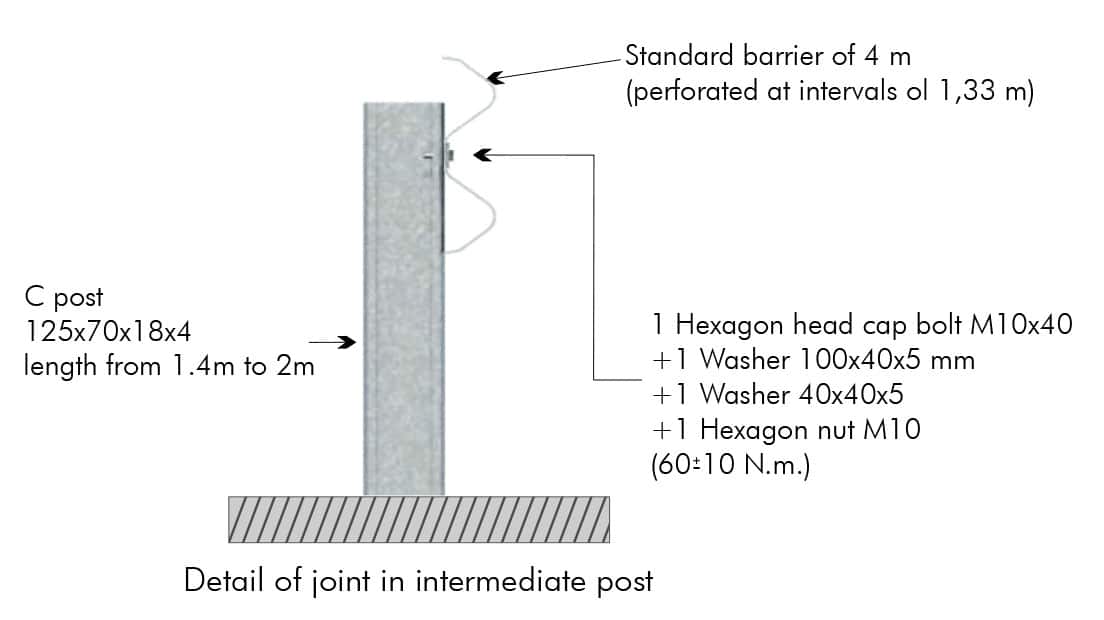

Fasteners
